24VDC Clear Transparent Label Detection Capacitive Label Sensor

Brand Name : F&C

Model Number : FC-4100/D

Certification : CE,Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT, paypal, Western Union

Supply Ability : 500pcs per week

Delivery Time : 7-10days

Packaging Details : single box package

Power supply : 12-24V DC

Output type : NPN+PNP NO or NPN+PNP NC

Accuracy : 0.2mm

Slot width : 2mm

Application : Transparent and non-transparent Label usage for labeling machine

Character : Reversible direction sensing available

Load current : 100mA at 24VDC

Response Time : 0.1ms

Contact Now

24VDC Clear Transparent Label Detection Capacitive Label Sensor

Capacitive sensors use an electric field to sense the amount of material in the sensor. The electric field exists in the gap between a sensing element in the top of the sensor and the grounded baseplate of the sensor. Web material placed in that gap changes the way the electric field behaves — more material changes it more. The electronics in the clear label sensor can sense these changes in the electric field. Capacitive label sensors are the most precise label sensors on the market.

Capacitive Label Sensor is the most competetive Solutions for clear and transparent label detection. Compared to common Sticker Label sensor , it is strong power, fast and stable, especially for transparent label sensing. Compared to Ultrasonic label sensor , it is much cheaper.

Datasheet for NPN PNP Capacitive label sensor

Model	FC-4100/D
Output type	PNP+NPN NO.NC
Groove Length	85mm
Detection distance	0.7mm
Accuracy & repeat	0.2mm
Operating voltage	DC12-24V±10%
Current consumption	≤25mA
Load current	100mA Max at 24VDC
Protection circuit	Reverse polarity protection and short circuit protection
Response time	0.1ms
Frequency	5Khz
Standard & Sensitivity	Smart Key setting
Indicator	Red: Balance benshmark and sensitivity level Green: Signal output
Ambient temperature	0-60 degree
Connector	M12 connector 5pin
Meterial	Aluminium
Wiring method	φ4mm×2M/4-wires

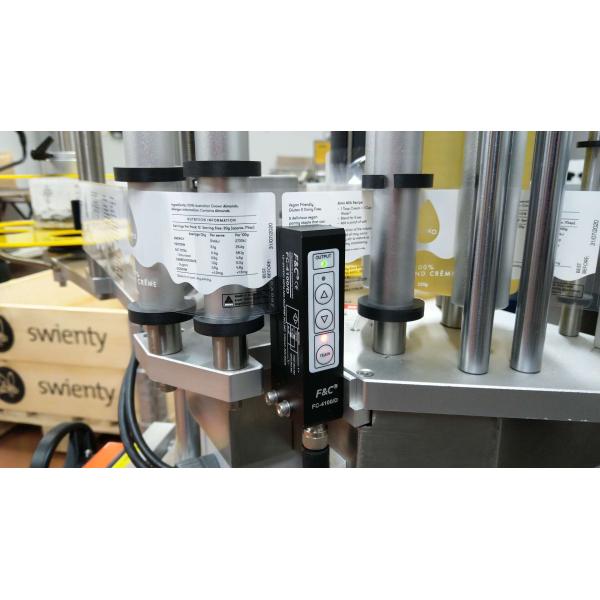

Photo for FC-4100 Capacitive Label sensor

Wiring Drawing for FC-4100/D capacitive label sensor

24VDC Clear Transparent Label Detection Capacitive Label Sensor

Label Sensor List

Model	Slot width	Output	Application
FC-2100	2mm	NPN NO NC or PNP NO NC	Universal adhesive labels
FC-2104	2mm	NPN NO NC or PNP NO NC	Universal adhesive labels
FC-2107	5mm	NPN NO NC or PNP NO NC	Universal adhesive labels
FC-2110	5mm	NPN NO NC or PNP NO NC	Universal adhesive labels
FC-2200	6mm	NPN NO NC or PNP NO NC	Universal adhesive labels
FC-2600	2mm	NPN NO NC or PNP NO NC	Universal adhesive labels
FC-2300	3mm	NPN NO NC or PNP NO NC	Clear adhesive labels
FC-4100	2mm	NPN+PNP NO	Clear adhesive labels

Video or more details, welcome to inquiry us.
